Diamond&CBN Grinding Wheels
Diamond&CBN Grinding Wheels








SUNVA diamond grinding wheels are made of bronze or resin bond. They are mainly used for grinding various hard carbide, special shaped surfaces and workpieces that made of hard brittle nonmetal materials with surface finish requirements or with difficult to machine surface. Our diamond grinding wheels also are used for thermal spray coating, HVOF etc.

When order wheels, please refer wheel shape, diamond grit size, concentration and other dimensions of the wheel.

• Nickel or copper coated is available

• High-quality

• Any size is available

Diamond Grinding Wheel Diamond Grinding Wheel Diamond Grinding Wheel
Dimensions of Wheel

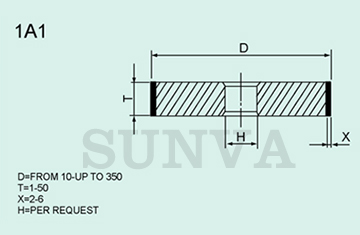

1A1 1A8
14A1 4B1
6A2 12A2-20'
12D1 9A3
11A2 12V2
12A2D-45' 12V4
12V5 6A9

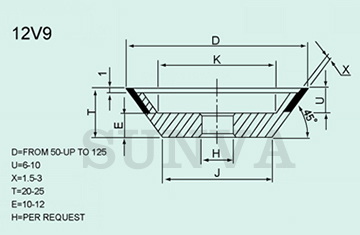

11V9 12V9
1EE1 1A1W
4A2 1V1

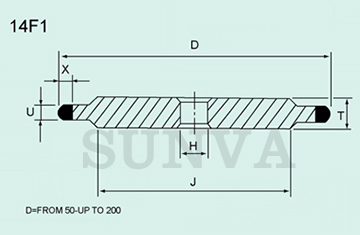

14F1 1F1W
